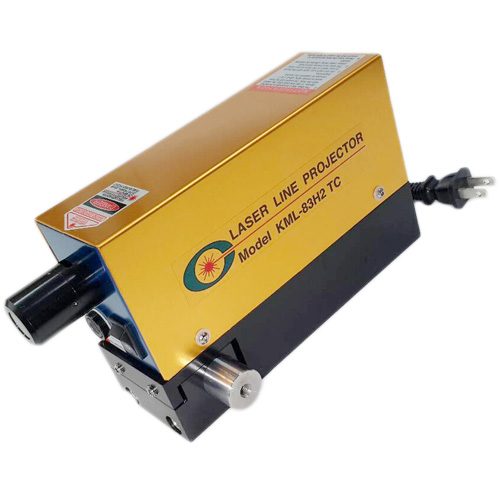

KML-83HX TC SERIES
Temp. Controlled LASER LINE PROJECTOR
Feature：
●Japan's industrial-grade laser diode
●Laser diodes 25°C constant temperature control
●Laser diode /optical lenses confined to deal
with Nitrogen
●Idemitsu patent adjustable lens
●Industrial design, high stability
●Long life
SPECIFICATIONS：
Model：KML-83H1TC
Wavelength：630 ~ 650 nm RED
Output Power：< 100 mW
Project Distance：< 50 m
Line Length：40 ~ 50 m
Based on indoor lighting 300~500 lux
Line Thickness：≤ 5 mm
Input Voltage：
AC 90 ~ 260 V 50 / 60 Hz
Operating Temp.：– 10 ~ +50 °C
Safety Class：Class Ⅲb
Lifetimes：> 50,000 hr
Dimensions：
L 185 X W 50 X H 103 (mm)
Weight：1050 ± 20 g
Model： KML-83H2TC
Wavelength：630 ~ 650 nm RED
Output Power：< 200 mW
Project Distance：< 100 m
Line Length：80 ~ 100 m
Based on indoor lighting 300~500 lux
Line Thickness：≤ 6 mm
Input Voltage：
AC 90 ~ 260 V 50 / 60 Hz
Operating Temp.：– 10 ~ +50 °C
Safety Class：Class Ⅲb
Lifetimes：> 50,000 hr
Dimensions：
L 185 X W 50 X H 103 (mm)
Weight：1050 ± 20 g
Applications：
● Wood working
● Stone working
● Rubber processing
● Metal workin
● Garment processing
Remarks：
1.The line length and line width of the
projection will vary depending on the
projection distance, angle, material,
color or illumination.
2.Special specifications can be requested.
